DMX Spy Pro

The ultimate pocket DMX troubleshooter is here!

Key Features:

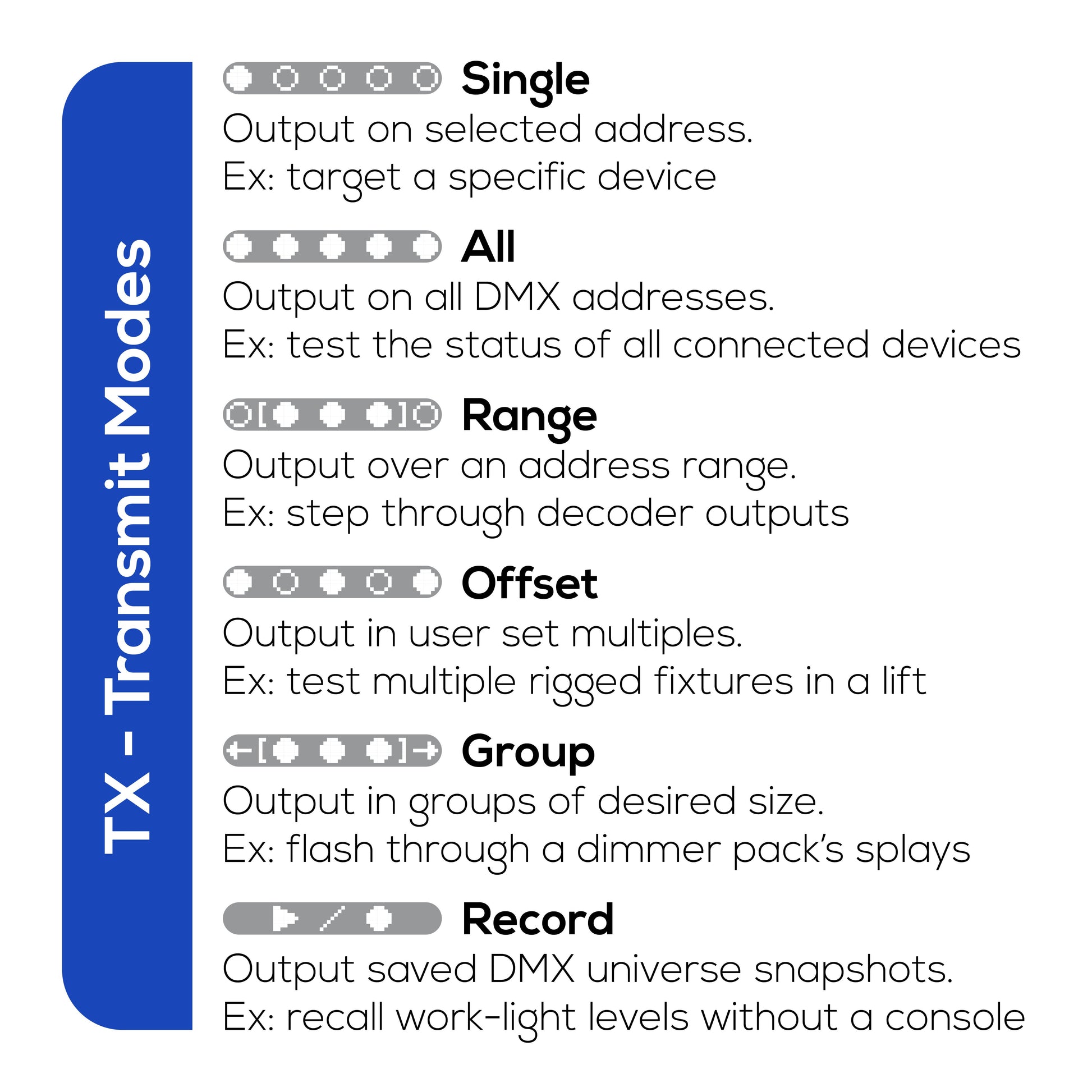

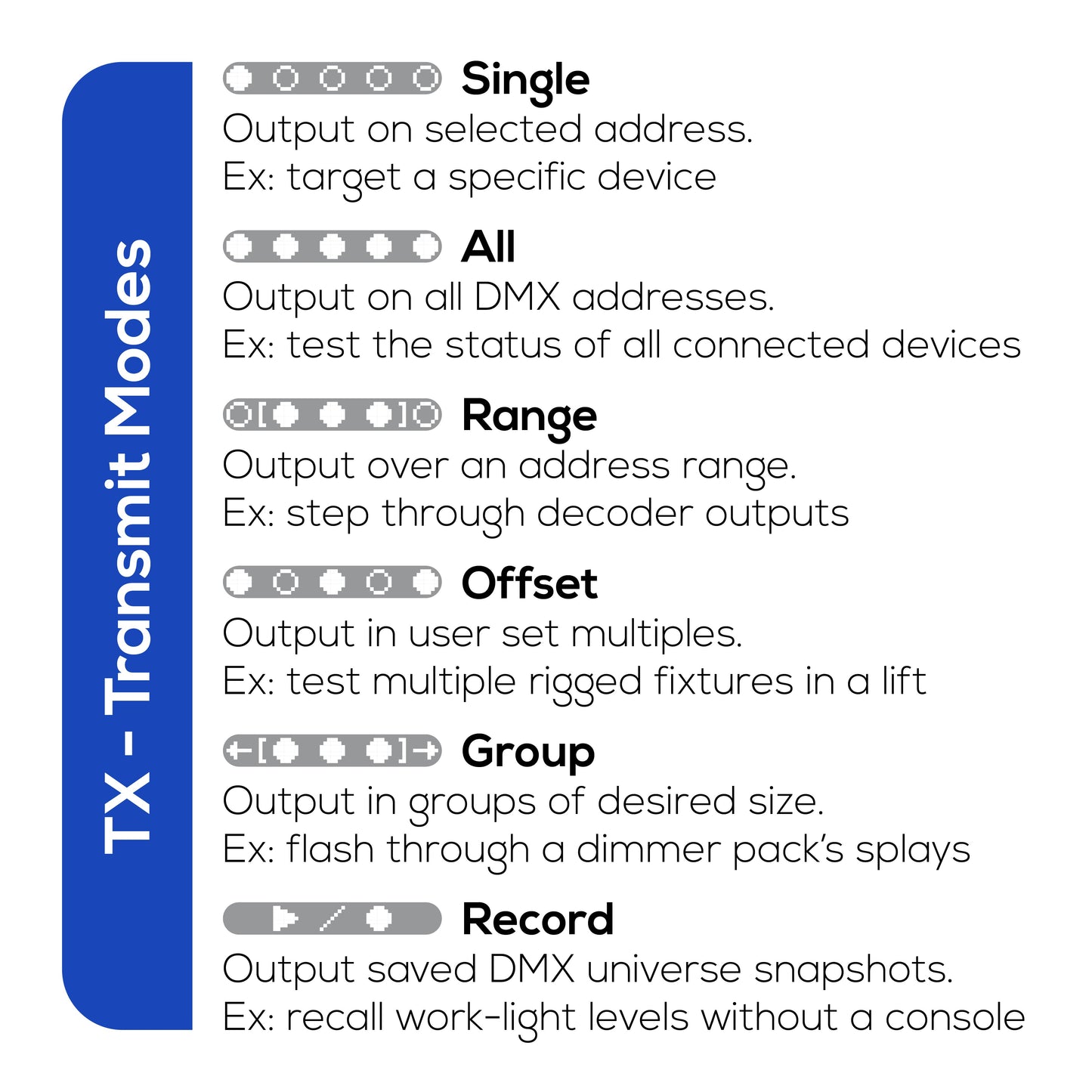

• 6 Output Modes - Transmit DMX without a console
  • Record - Playback and save DMX universe snapshots. Instantly recall work-light levels on a set without a console, test a known good patch, or quickly run functionality tests on new fixtures.
  • Single - Output on selected address only. Target a specific device and validate its configuration/functionality.
  • All - Output on all DMX addresses (1-512). Test the status of every device connected to a DMX line, or immediately locate unknown downstream devices.
  • Range - Output over the selected address range. Step through decoder outputs, confirm pixel effects, and test fixtures.
  • Offset - Output in multiples of your choosing, starting from a selected address. Validate multiple sequential fixtures, LED decoders, or dimmers.
  • Group - Output in groups and easily shift to the next group in series. Flash through the output splays of a newly installed dimmer pack, or multiple contiguous LED decoders.

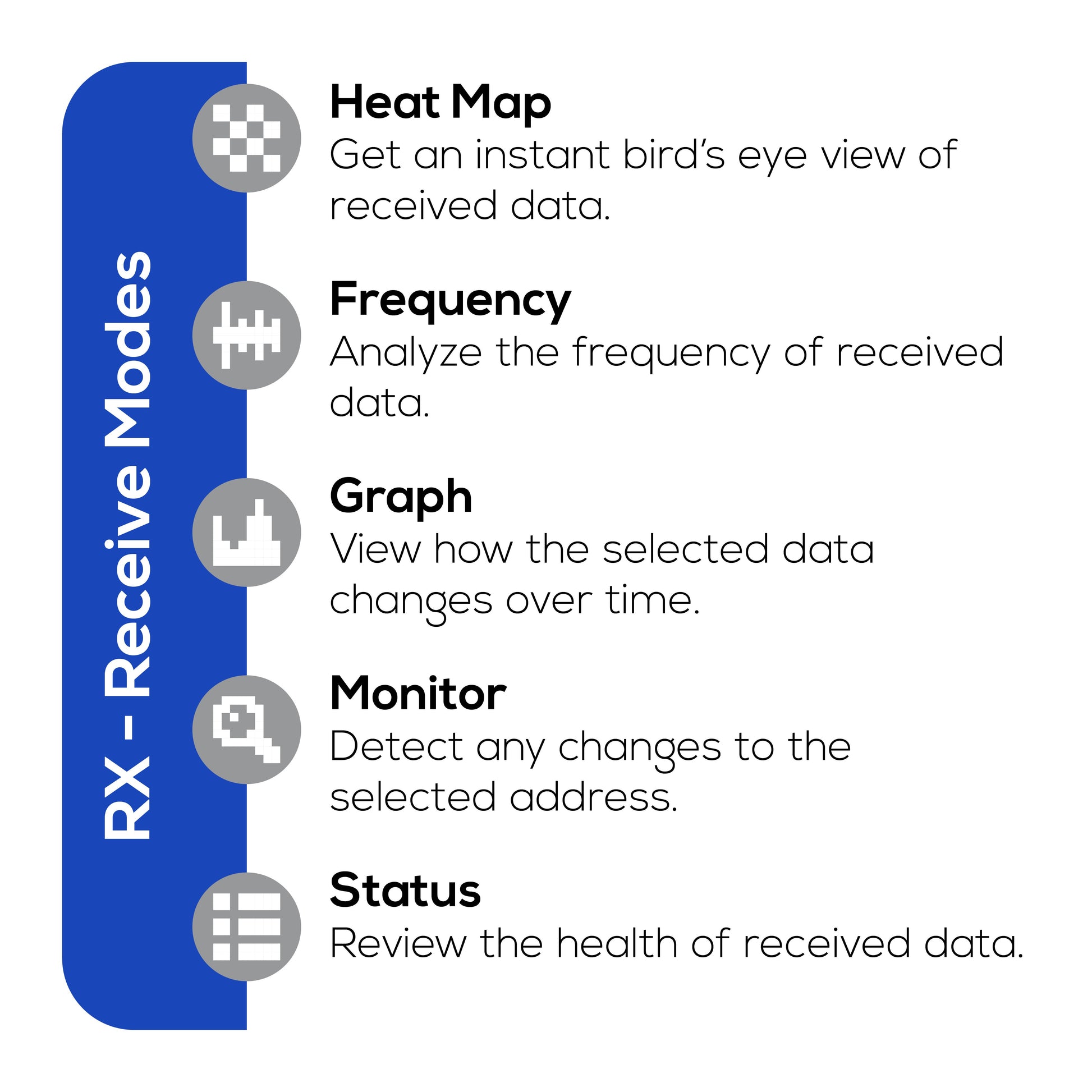

• 5 Input Modes - Troubleshoot without flying blind
  • Heatmap - Get a bird's eye view of an entire DMX universe. Instantly view patch issues, flashing fixtures, effects, chases or even time-code to validate your network's activity, status, and speed.
  • Frequency - Analyze the frequency of received data. Immediately identify abnormal data speeds, hitching caused by fluctuating wireless speeds and fast data that could cause incompatibility.
  • Graph - View how the selected address changes over time. Keep an eye on effect smoothness, observe data stuttering, and identify intermittent issues.
  • Monitor - Detect any unwanted changes to the selected address. Pinpoint flickers, dropouts, bumps, or any data anomalies.
  • Status - Review the health of received data. Ensure a data source is outputting correct and compatible data with an overview of data state, frequency, and number of slots received.
• Rugged Nylon Exterior - Built for nights on the road, backlot, forest, or anywhere the show might take you.
• USB-C - Keep the power flowing with this industry standard connector
• OLED Display - High contrast, bright, and visible in any lighting environment.

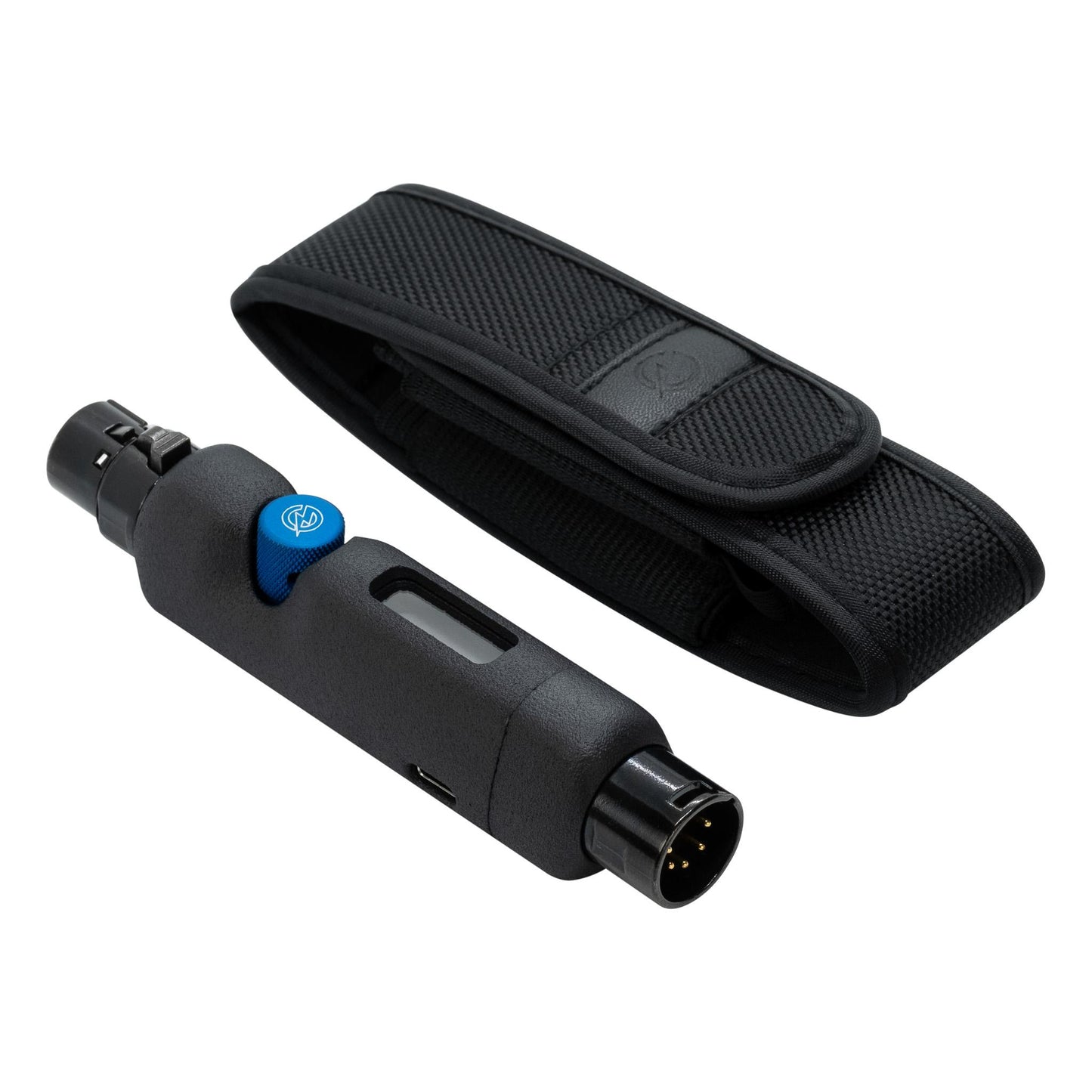

• Tool Pouch Included - By your side, always ready to help you be the hero!

Perfect For:

• Testing rigs without a console present
• Diagnosing large arrays of fixtures
• Troubleshooting CRMX transmitters
• Advanced data troubleshooting

Tech Specs:

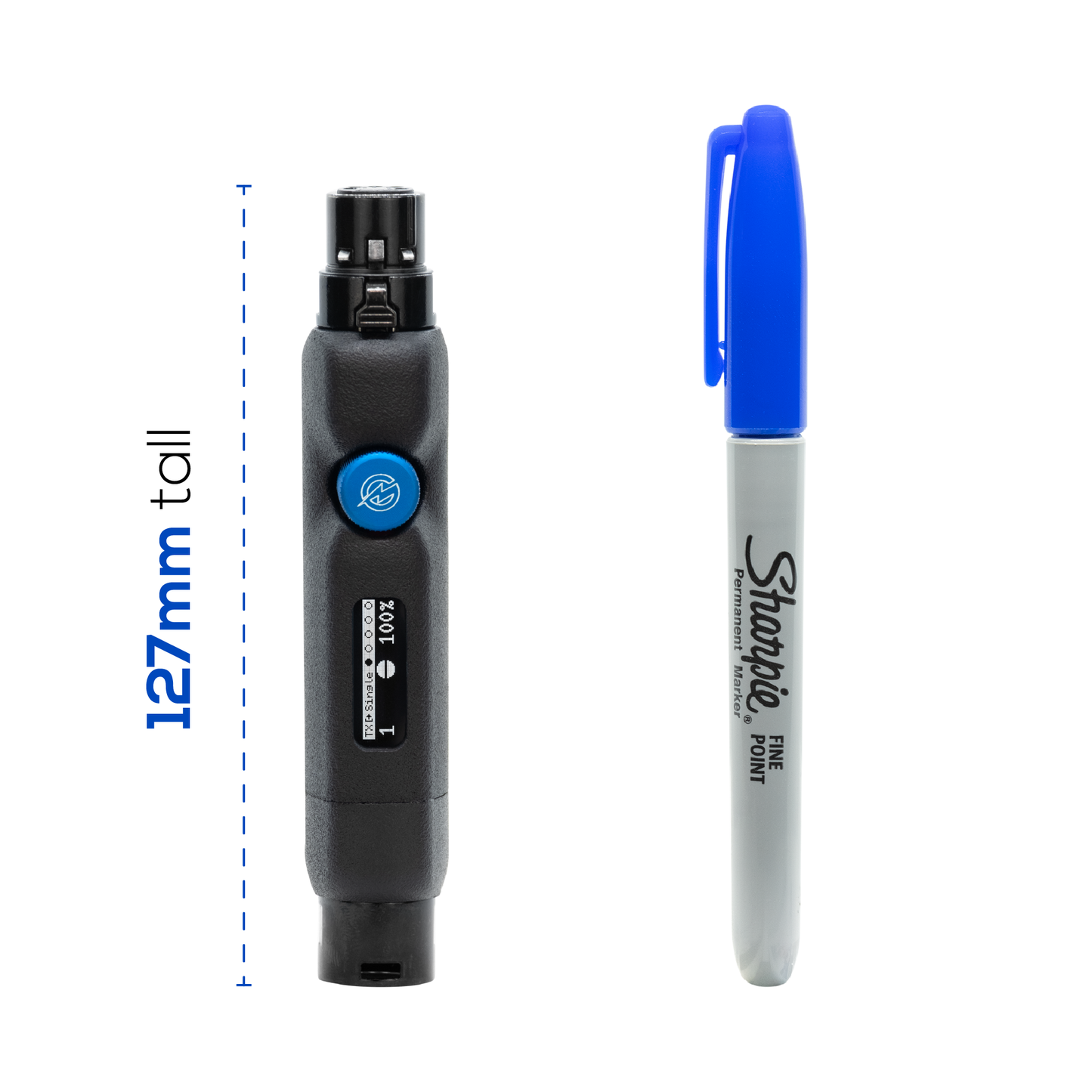

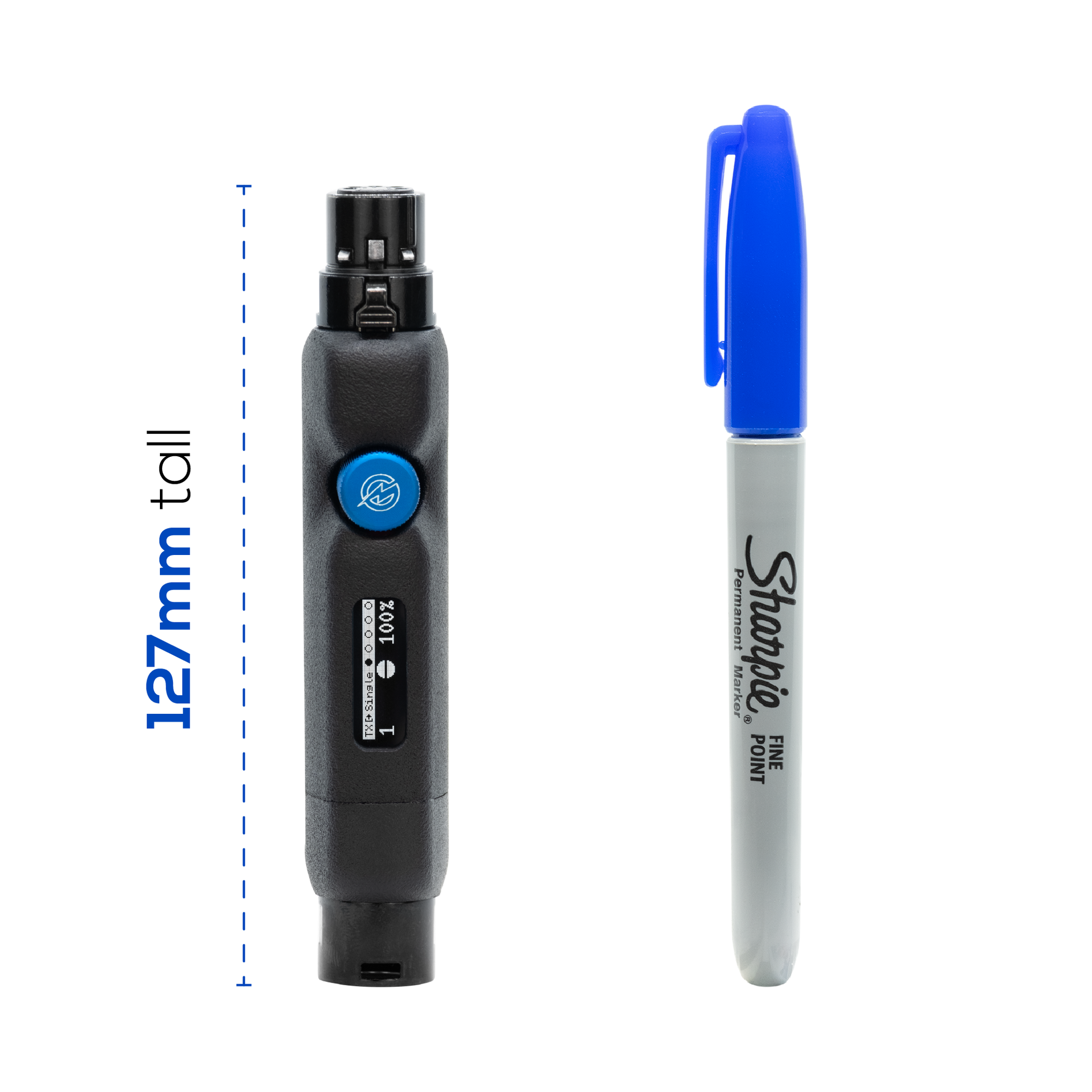

• Dimensions: 127 x 23.5 x 28 mm / 5 x 0.9 x 1 inch
• Weight: 77 g / 2.7 oz
• Display: 0.91" OLED
• Battery: Integrated rechargeable
• Battery Life: 12+ Hours screen-on time
• Power Connector: USB-C
• Data Connectors: 5 pin male XLR, 5 pin female XLR
• Data Protocol: DMX512
• Mounting: Lanyard loop, Tool pouch
