DMX Spy Lite
DMX Spy Lite
Couldn't load pickup availability
Instant DMX Universe Identification & Monitoring![]()
![]()
Key Features:
- Universe Identifier - Identify a universe's number instantly. No label? No problem! Displayed as both a percentage % and decimal (0-255) value.

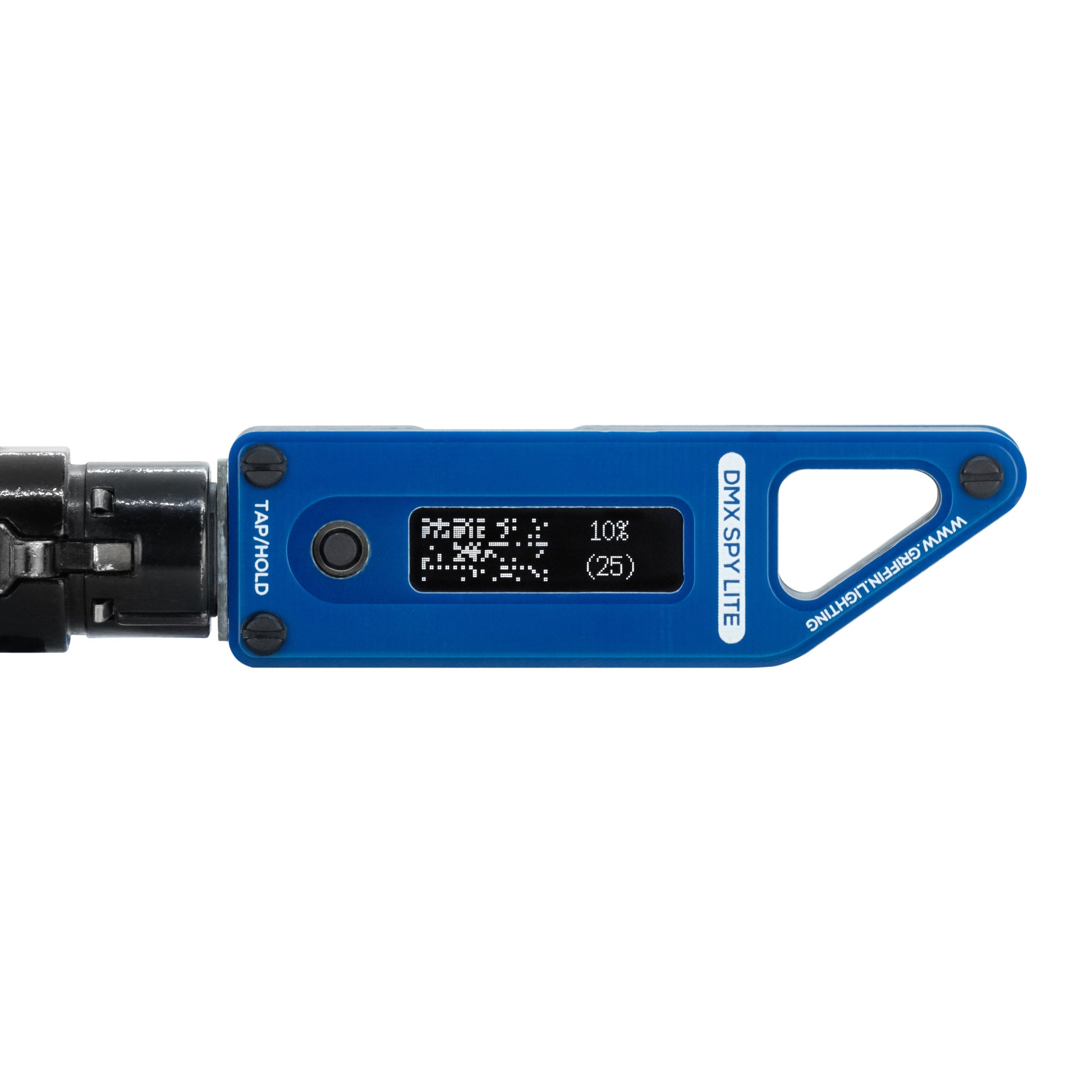

- DMX Heatmap - Get a bird's eye view of an entire DMX universe. Instantly view patch issues, flashing fixtures, effects, chases or even time-code to validate your network's activity, status, and speed.
- OLED Display - High contrast, bright, and visible in any lighting environment.
- Ultra-compact - Perfectly portable, always ready to help you be the hero!
Perfect For:
- Identifying mystery DMX cables
- Troubleshooting complex rigs
- System health/status checks
- Diagnosing CRMX issues
Tech Specs:

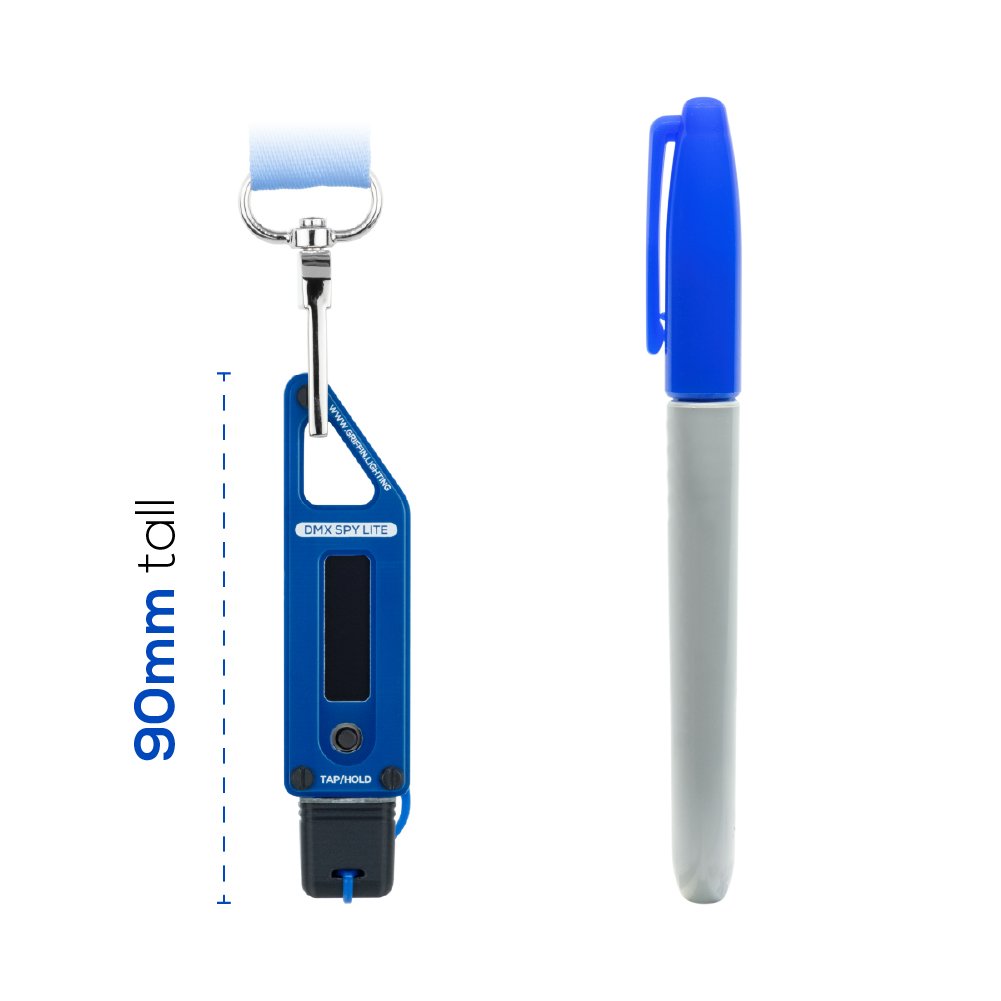

- Dimensions: 90 x 21 x 12.5 mm / 3.5 x 0.85 x 0.5 inch
- Weight: 17 g / 0.6 oz
- Display: 0.91" OLED

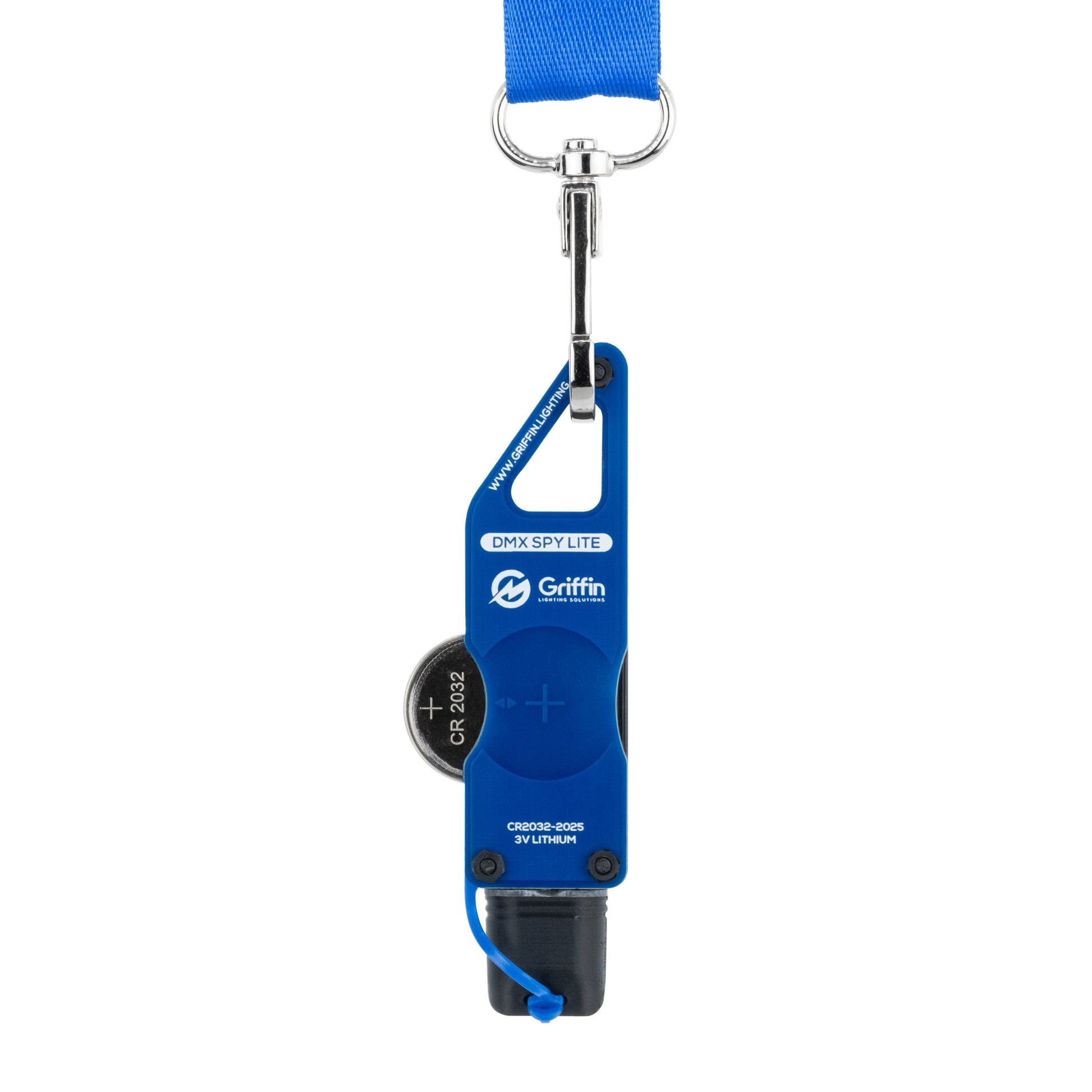

- Battery: CR2032-CR2025 lithium
- Battery Life: 3.5+ Hours screen-on time
- Power Connector: N/A
- Data Connector: 5 pin male XLR
- Data Protocol: DMX512
Requirements:
Universe identifiers must be setup in your lighting console to best utilize this device. The level of DMX address 512 must be matched to the universe which it occupies. (Uni 1 -> 1%, Uni 10 -> 10% etc...)
DMX Spy Comparison:
| DMX Spy Pro | DMX Spy | DMX Spy Lite | |
| DMX Data Input |
|
|
|
| Address Selection |
|
|
|
| Integrated Battery |
|
|
|
| DMX Data Output |
|
Instructions
Instructions
Need help with our products? Check out our handy manuals.
Warranty
Warranty
This warranty covers any workmanship/manufacturing defects. It does not cover damage resulting from incorrect handling, storage, or modifications. Devices returned under warranty will either be replaced, or repaired at our discretion. Return shipping labels will be provided for qualifying devices.
GLS is committed to supporting all our products. We are happy to repair products that are out of warranty or that have been damaged for an additional cost.
Please contact us for any warranty concerns.
Customization Available
Customization Available
